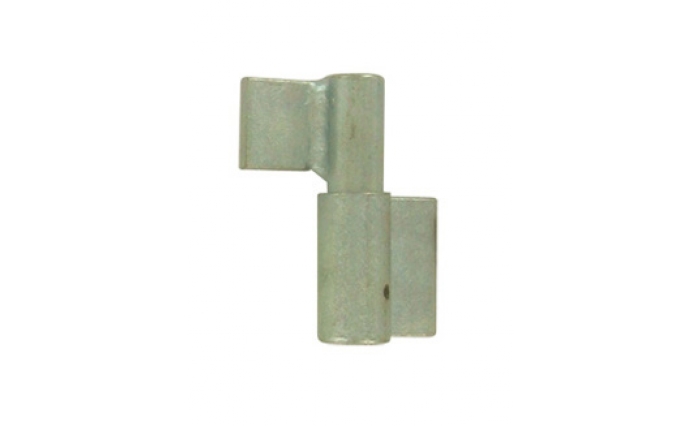

Tuff Hinge, Ball Bearing Hinge RH
Card No. 1108.34
Specifically designed for vertical application, TUFF ball bearing hinges are zinc plated steel and are suitable for steel-to-steel doors and gates.
- Maximum load of 500kg per pair (subject to method of fixing)
- Hinge independently (failure) tested and recorded at 2898 Newtons (maximum load)
- Extra tough double welded construction
- Easy action – ball bearing pivot enables effortless gate movement
- Available in both left hand and right hand designs

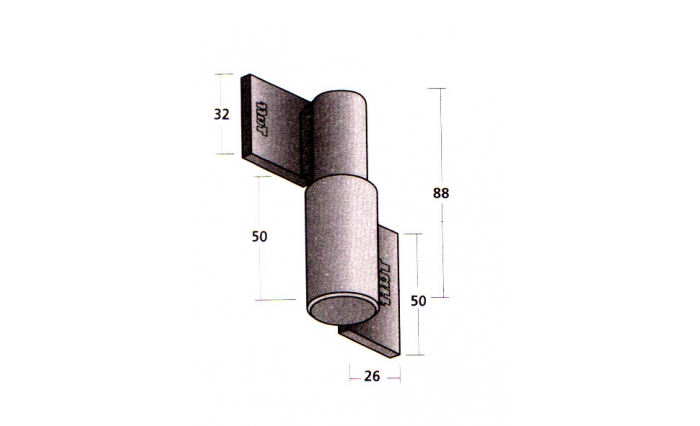

Bush Diameter: 25mm
Pin Diameter: 19mm
