Stainless Steel Fuel Fillers for Vehicles
Fuel/Water Filler, Lockable, 38mm, SS
Card Number. 2704.60
• 316G stainless steel.
• Cylinder lock made from marine-grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included.
• Can be used for diesel.
Water Filler, Lockable, 38mm, SS
Card Number. 2704.61
• 316G stainless steel.
• Cylinder lock made from marine grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included.
Diesel Filler, Lockable, 50mm, SS
Card Number. 2704.59
• 316G stainless steel.
• Cylinder lock made from marine-grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included.
Diesel Filler, 38mm, SS
Card Number. 2704.55
• 316G stainless steel.
• Flush mounting.
• O-ring seal.
• Cap retainer chain.
• Key included.
| Flange O.D. | 74mm |
| Cut Out | Dia. 46mm |
| Protrusion | 6.5mm |
| Intrusion | 76mm |
| Mount Screws | 5mm c/s |
| Type | Diesel |
| Angle | Straight |
| Hose Size | 38mm (1-1/2 inch) |
Water Filler, 38mm, SS
Card Number. 2704.56
• 316G stainless steel.
• Flush mounting.
• O-ring seal.
• Cap retainer chain.
• Key included.
| Flange O.D. | 74mm |
| Cut Out | Dia. 46mm |
| Protrusion | 6.5mm |
| Intrusion | 76mm |
| Mount Screws | 5mm c/s |
| Type | Water |
| Angle | Straight |
| Hose Size | 38mm (1-1/2 inch) |
Diesel Filler, 50mm, SS
Card Number. 2704.58
• 316G stainless steel.
• Flush mounting.
• O-ring seal.
• Cap retainer chain.
• Key included.
| Flange O.D. | 89mm |
| Cut Out | Dia. 52mm |
| Protrusion | 7.5mm |
| Intrusion | 82mm |
| Mount Screws | 5mm c/s |
| Type | Diesel |
| Angle | Straight |
| Hose Size | 50mm (2 inch) |
Water Filler, 50mm, SS
Card Number. 2704.57
• 316G stainless steel.
• Flush mounting.
• O-ring seal.
• Cap retainer chain.
• Key included.
| Flange O.D. | 89mm |
| Cut Out | Dia. 52mm |
| Protrusion | 7.5mm |
| Intrusion | 82mm |
| Mount Screws | 5mm c/s |
| Type | Water |
| Angle | Straight |
| Hose Size | 50mm (2 inch) |
30° Fuel Filler, Lockable, 38mm, SS
Card Number. 2704.64
• 316G stainless steel.
• Cylinder lock made from marine grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included
| Cut Out | Dia. 52mm |
| Protrusion | 17mm |
| Intrusion | 105mm |
| Mount Screws | 5mm c/s |
| Angle | 30 Degree |
| Unit Qty | 1 |
| Type | Fuel |
| Hose Size | 38mm (1-1/2 inch) |
| Flange O.D. | 90mm |
30° Water Filler, Lockable, 38mm, SS
Card Number. 2704.65
• 316G stainless steel.
• Cylinder lock made from marine grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included
| Cut Out | Dia. 52mm |
| Protrusion | 17mm |
| Intrusion | 80mm |
| Mount Screws | 5mm c/s |
| Angle | 30 Degree |
| Unit Qty | 1 |
| Type | Water |
| Hose Size | 38mm (1-1/2 inch) |
| Flange O.D. | 90mm |
30° Diesel Filler, Lockable, 50mm, SS
Card Number. 2704.63
• 316G stainless steel.
• Cylinder lock made from marine grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included.
| Cut Out | Dia. 52mm |
| Protrusion | 17mm |
| Intrusion | 97mm |
| Mount Screws | 5mm c/s |
| Angle | 30 Degree |
| Unit Qty | 1 |
| Type | Diesel |
| Hose Size | 50mm (2 inch) |
| Flange O.D. | 90mm |
30° Water Filler, Lockable, 50mm, SS
Card Number. 2704.62
• 316G stainless steel.
• Cylinder lock made from marine grade stainless steel.
• Designed when locked the cap revolves freely but cannot be opened.
• O-ring seal.
• Cap retainer wire.
• 2 keys included.
| Cut Out | Dia. 52mm |
| Protrusion | 17mm |
| Intrusion | 97mm |
| Mount Screws | 5mm c/s |
| Angle | 30 Degree |
| Unit Qty | 1 |
| Type | Water |
| Hose Size | 50mm (2 inch) |
| Flange O.D. | 90mm |
2” Aluminium Weld On Cap
Card Number. 2726.00
O-ring sealed cap and neck.
Perfect for custom radiators, overflow tanks, power steering tanks, catch cans, etc.
Safely store your fuel and water with premium fillers

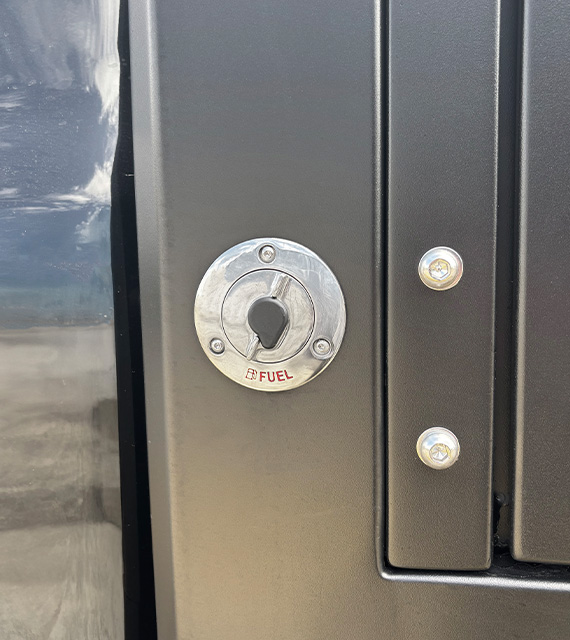

Ovesco’s fuel and water fillers are designed for durability and convenience. They feature clearly legible imprinted labels so you know exactly what liquid they’re storing. Not only are they made of rust-resistant stainless steel, our lockable fillers (key included) also have an O-ring seal and sit flush to guarantee a near-impenetrable seal.
With their exceptional design and functionality, ovesco's fuel and water fillers provide a versatile solution for storing liquids in various applications, including ute canopies and under trays. By incorporating our filler caps into your vehicle, you can conveniently and securely store liquids such as fuel or water.
Australia’s leading supplier of hardware
Ovesco has been built on selection and service. We take pride in being able to offer product solutions for any issue in the industrial and transport sectors. Better yet, we have the experience to offer qualified advice across the broad selection of items we supply. We know what it takes to meet your expectations.
4000 items
We have over 4000 high quality product lines available in hundreds of different categories.
20 years
We have over 20 years of experience servicing businesses in industrial and transport.
How we meet customer expectations
Our staff are highly experienced tradespeople from an array of fields and offer reliable advice for all solutions in the industrial and transport sectors. Contact us by phone or send through an email enquiry and one of our qualified staff will contact you back to assist with the right solution.
FAQs
Does an Ovesco fuel filler cap work for any vehicle?
No. Ovesco supplies fuel filler caps that are designed for bespoke projects. Therefore, they are not designed to fit standard applications.
What is a fuel filler cap?
Can a loose fuel filler cap affect vehicle performance?
