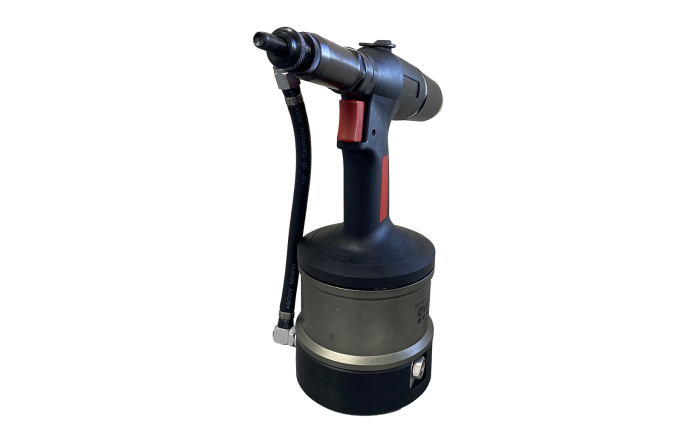

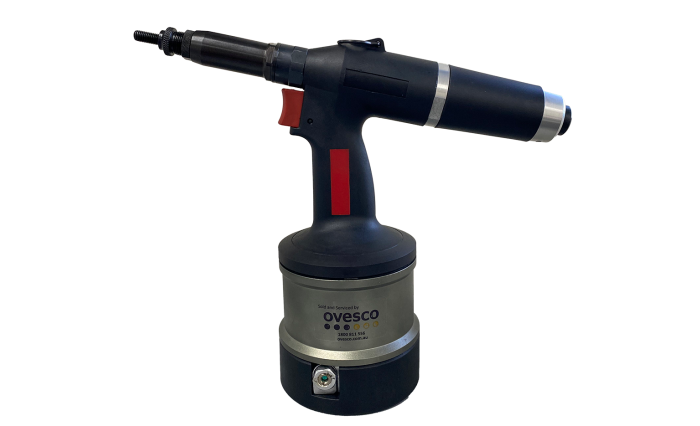

W10A-N Spin/Pull Air Insert Tool c/w M4 to M12 Mandrels
Card No. 1906.24
Air Rivet Nut Tool for Thread Insert up to M12
The W10A-N is a cost-effective and reliable air rivet nut tool that is capable of installing rivet nuts up to M12 in a range of materials. It is suitable for both production and project-based installations.
- It is supplied with a full set of nose assemblies
- Fast and simple change of mandrel and nosepiece
- Easy stroke adjustment with engraved indicator
Specifications
Product code: W10A-N
Weight: 2.46kg
Length: 300mm
Operating Air Pressure: 5 - 7 bar
Pulling Force: 29.1 KN
Stroke: 7mm

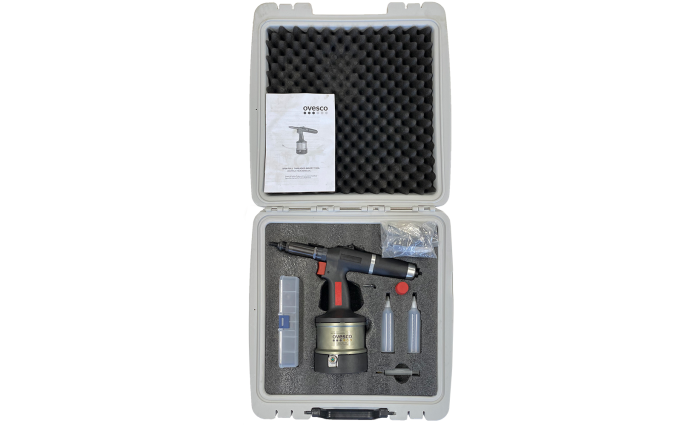

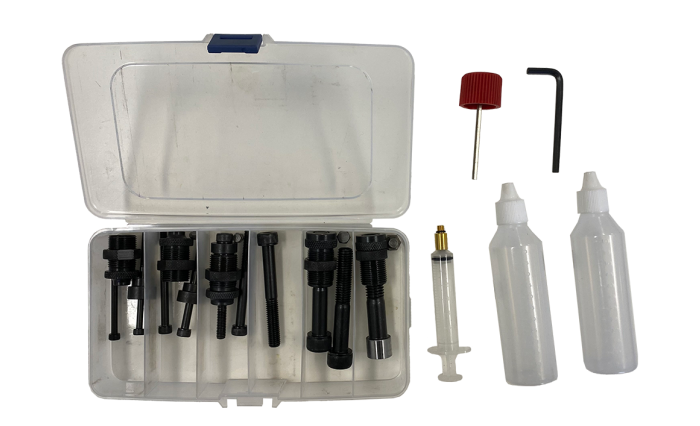

Package Accessories: Mandrels and nosepieces for M4, M5, M6, M8, M10 & M12 Thread Inserts, operating manual.
