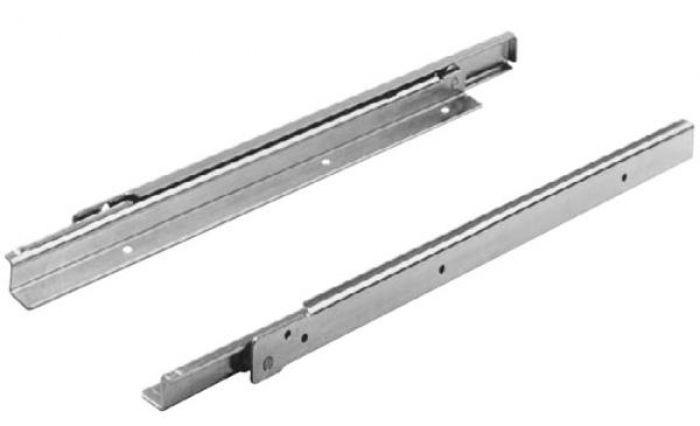

Base Mount 100Kg Drawer Slide

100Kg* Zinc Plated Drawer Slide

Roller Bearing Base Mount

Sold in pairs

*carry capacity per pair

$150.15 - $289.65 (GST Inc) $136.50 - $263.32 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Installed / Extension
Stationary Use
Transportation Use
GST Inc.
GST Ex.
Card No.
2998.52
Part No.
Installed / Extension
450mm / 350mm
Stationary Use
100kg
Transportation Use
90kg
$150.15 (GST Inc.)
$136.50 (GST Ex.)
Card No.
2998.54
Part No.
Installed / Extension
500mm / 400mm
Stationary Use
100kg
Transportation Use
90kg
$154.10 (GST Inc.)
$140.09 (GST Ex.)
Card No.
2998.56
Part No.
Installed / Extension
550mm / 450mm
Stationary Use
100kg
Transportation Use
90kg
$163.45 (GST Inc.)
$148.59 (GST Ex.)
Card No.
2998.58
Part No.
Installed / Extension
600mm / 500mm
Stationary Use
100kg
Transportation Use
90kg
$170.45 (GST Inc.)
$154.95 (GST Ex.)
Card No.
2998.60
Part No.
Installed / Extension
650mm / 550mm
Stationary Use
100kg
Transportation Use
90kg
$199.95 (GST Inc.)
$181.77 (GST Ex.)
Card No.
2998.62
Part No.
Installed / Extension
700mm / 590mm
Stationary Use
100kg
Transportation Use
90kg
$215.40 (GST Inc.)
$195.82 (GST Ex.)
Card No.
2998.64
Part No.
Installed / Extension
800mm / 680mm
Stationary Use
95kg
Transportation Use
85kg
$227.75 (GST Inc.)
$207.05 (GST Ex.)
Card No.
2998.66
Part No.
Installed / Extension
900mm / 770mm
Stationary Use
90kg
Transportation Use
80kg
$272.60 (GST Inc.)
$247.82 (GST Ex.)
Card No.
2998.68
Part No.
Installed / Extension
1000mm / 860mm
Stationary Use
90kg
Transportation Use
80kg
$289.65 (GST Inc.)
$263.32 (GST Ex.)
