Centaflex Hinge

Centaflex Hinge

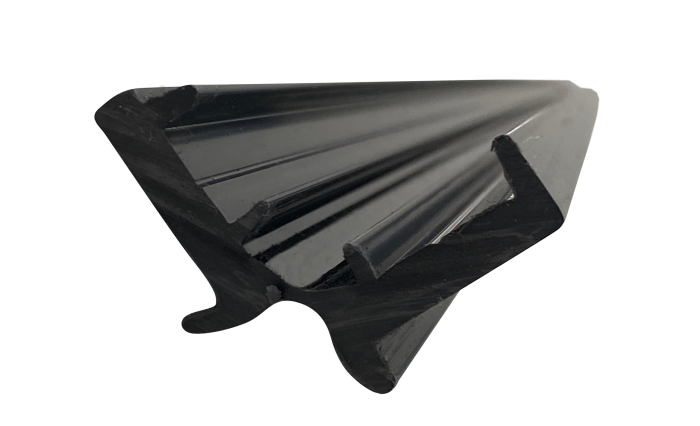

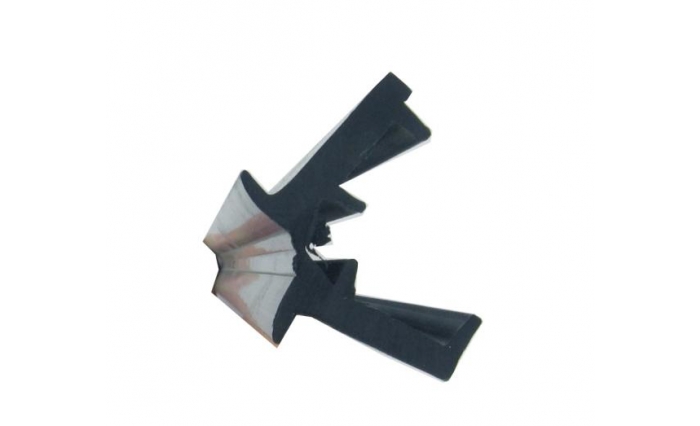

Centaflex Hinge is a modern, one-piece, continuous hinge specifically designed to give a low profile and stylish look to your vehicle’s appearance. Centaflex takes full advantage of the latest advances in new materials and manufacturing technology, the membrane is a flexible resin comprising of a patented blend of polyester elastomers combining the high strength of engineering resins with excellent flexibility. The result is that the Centaflex hinge has an excellent flex-life at temperatures ranging from -40°C to 50°C (-40°F to 122°F).

Popular for trucks, service vehicles, toolboxes and canopies, Centaflex hinge offers water and dust protection and is a great alternative to a piano hinge. This hinge is commonly used in the manufacture of canopies; however, it is ideal for any application where you need a weatherproof hinge. It is supplied in 2m or 3m lengths and has a black finish.

Coextruded rigid PVC profiles are fused together with the molten membrane creating an extremely strong and resilient hinge. A 1m length fitted horizontally has an SWL of 100kg per 1 metre of horizontally fitted length.

Centaflex Hinges offers:

  • Durability – tested to over 50,000 operating cycles
  • Security – interlocking profile when closed
  • Weatherproof continuous seal – keeps water and dust out
  • Discreet, low profile exterior

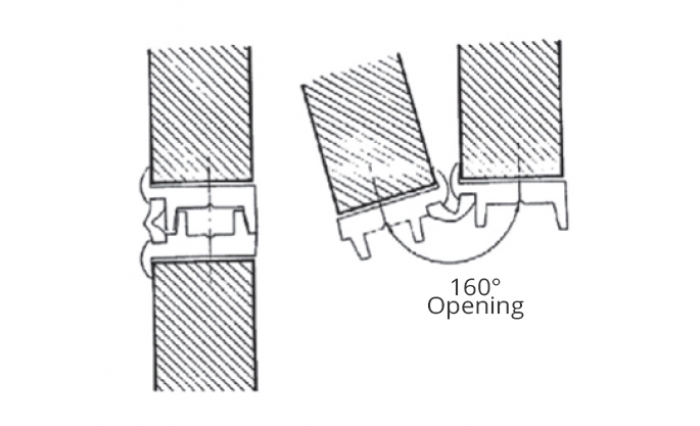

  • An opening angle of 160 degrees
  • Strong but lightweight
  • Excellent flex life
  • Maintenance-free
  • Concealed fixings
  • Corrosion-resistant
  • Competitive pricing
  • UV stable
  • Easy to install with adhesive and rivets
  • Can be drilled
  • Can be shipped

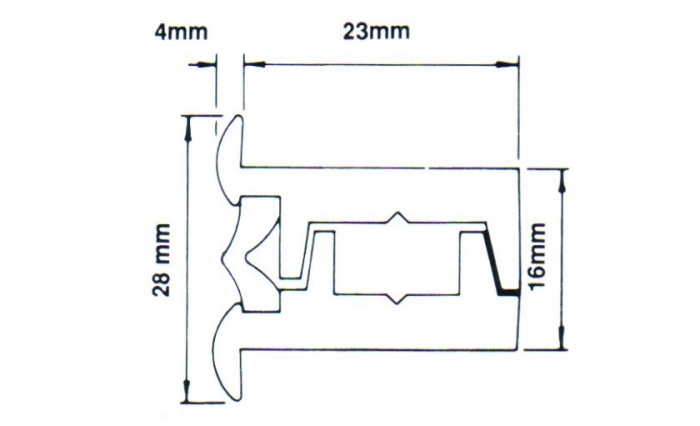

If you are using Centaflex Hinge to replace a piano hinge you will need to leave a 16mm gap as it is thicker than a piano hinge.

$69.95 - $97.95 (GST Inc) $63.59 - $89.05 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Size
GST Inc.
GST Ex.
Card No.
1106.02
Size
2 Metre
$69.95 (GST Inc.)
$63.59 (GST Ex.)
Card No.
1106.03
Size
3 Metre
$97.95 (GST Inc.)
$89.05 (GST Ex.)
